Electrical Insulating Paper
We offer a complete range of insulation paper for high-voltage cables, transformers, bushings and other electrical applications.
We provide Electrical insulating Kraft paper for Power transformers, Distribution Transformers, Instrument Transformers, Bushings and Sub-marine cables in plain and creped paper, produced in customized widths.
Plain paper in medium and high density
Paper for flat and round magnet wire insulation, layer insulation and cable insulation
Creped paper in normal, medium or high density
Paper for flat, round and CTC magnet wire insulation
Creped paper for instrument transformer heads
Paper for semi-conducting carbon black
All papers are produced as per IEC standards or as per customer's requirement and according to international standards and can be produced as Thermotrans or Thermally upgraded for extended thermal endurance.

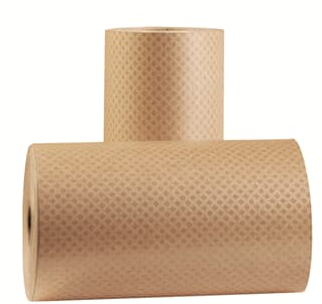

Diamond Dotted Paper for Distribution Transformers, it improves the mechanical strength of oil filled transformer windings without reducing partial discharge levels.
Natural Brown color with epoxy resin coating and diamond shape
Insulation class A (105°C) according to IEC standards
Kraft paper - 100% pure pulp

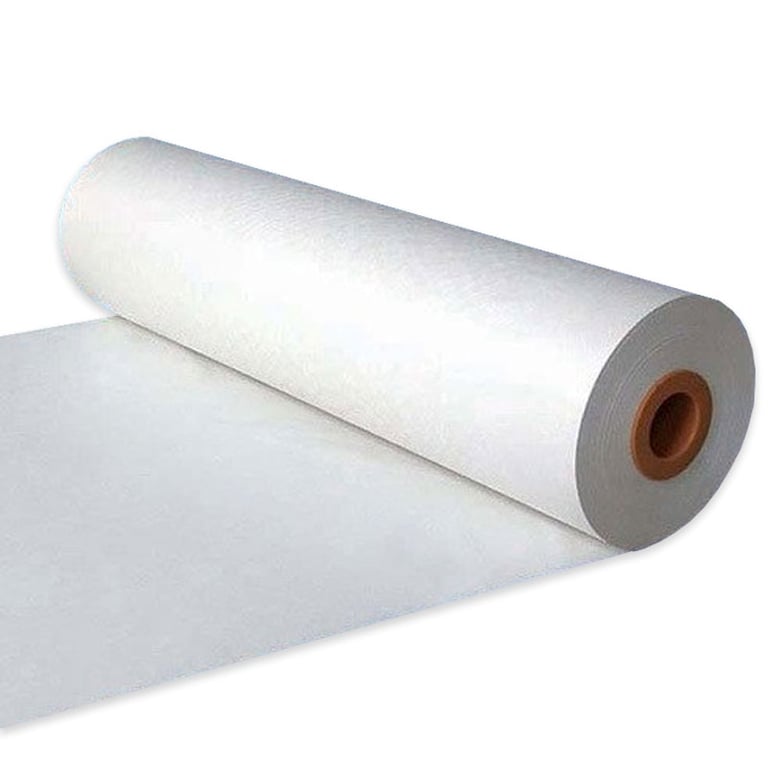

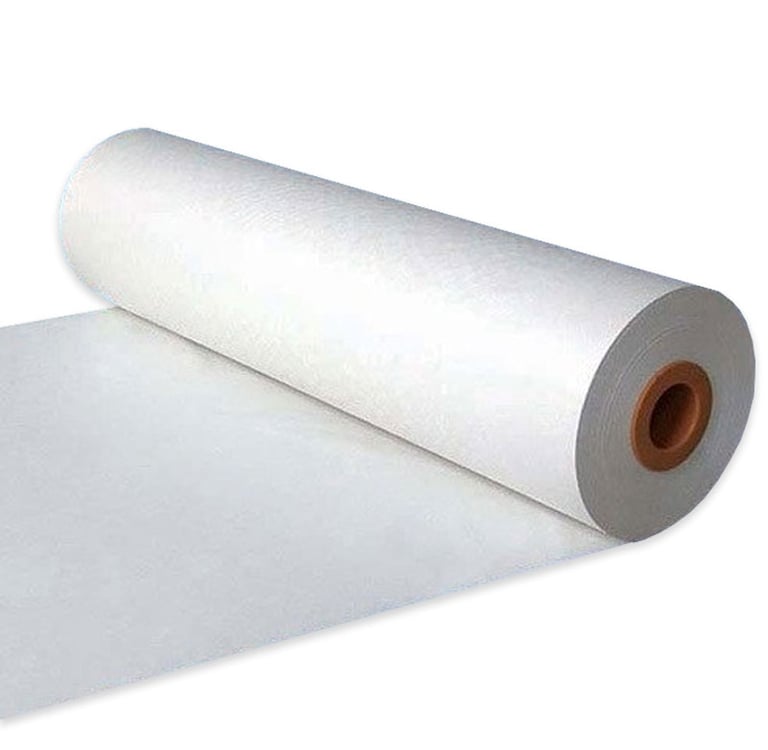

Nomex®, a high-performance synthetic material developed by DuPont™, has emerged as a key player in various industries due to its exceptional thermal stability, flame resistance, and durability.
Nomex® paper is an insulating paper with high thermal stability (-196°C - 300°C).
It has very high mechanical strength, excellent flame resistance and good dielectric properties. It can also be hot- or cold-formed. This is why Nomex® is often found in applications requiring optimum insulation, such as :
High-voltage equipment (transformer-generators)
Electric motors
Electric batteries
Nomex® fibers are non-conductive and exhibit low thermal conductivity, making them invaluable in applications where thermal insulation and electrical safety are essential.
USES
Nomex’s® versatility and exceptional properties make it an essential material in numerous industries:
Electrical Insulation: Nomex® paper is employed as electrical insulation in motors, transformers, and other electrical equipment. It ensures electrical safety and reliability.
